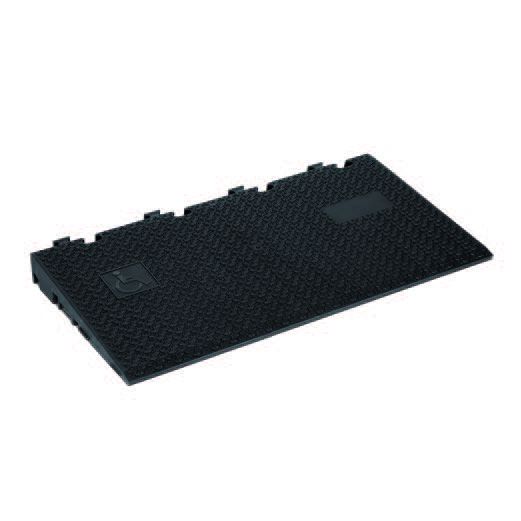

Ramp for cable crossover Defender 3 2D

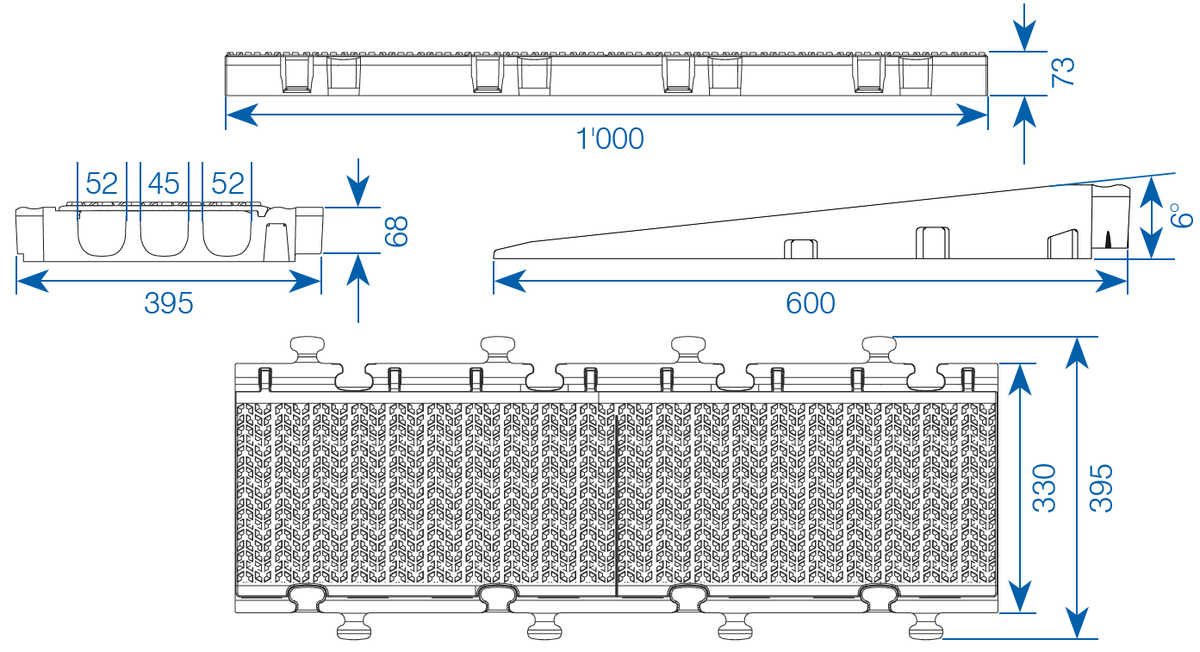

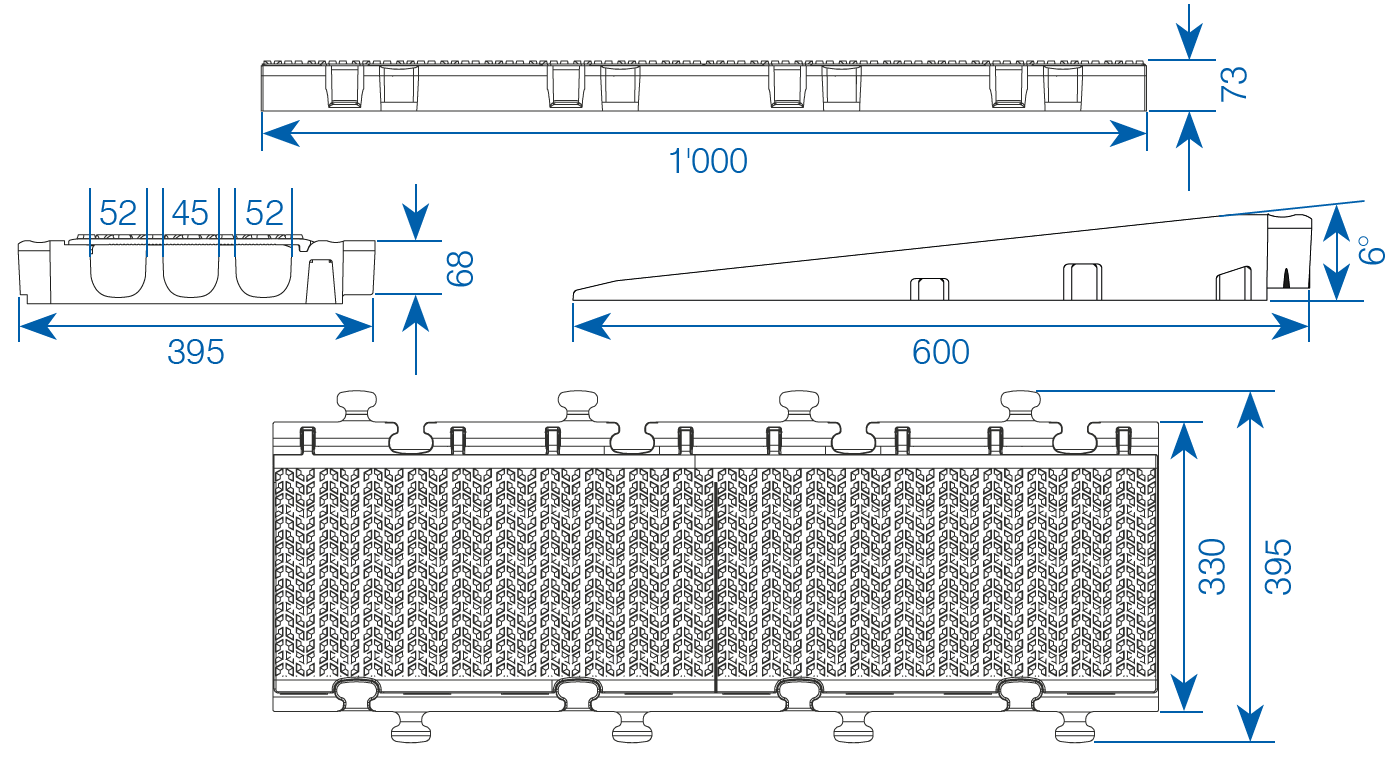

Technical data

Material

polyurethane

Width

600 mm

Length

1000 mm

Height

71 mm

Colour

black-yellow

Characteristics

• heavy-duty cable bridge with 3D-Lasergrip non-slip surface made from recycled polyurethane

• Simple, multi-directional modular design with unlimited expandability in width and length
• Made of extremely robust and break-proof TPU
• Recyclable polyurethane lid with secure locking and patented self-cleaning lid hinge
• Fire protection class E according to DIN EN 13501-1

Weight

15.6 kg

Max. load

~5’000kg/750cm²

Diameter of cable

50 mm

Quantity of channels

3 pc

Accessories

Item No: 224766

Cable crossover Defender 3 2D, 3 channels,

modular system - middle part, 1'000x395x73mm

Item No: 242888

Cable crossover Defender 3 2D, 3 channels,

modular system - middle part, 500x395x73mm

suitable for

Item No: 224766

Cable crossover Defender 3 2D, 3 channels,

modular system - middle part, 1'000x395x73mm

Item No: 242888

Cable crossover Defender 3 2D, 3 channels,

modular system - middle part, 500x395x73mm
