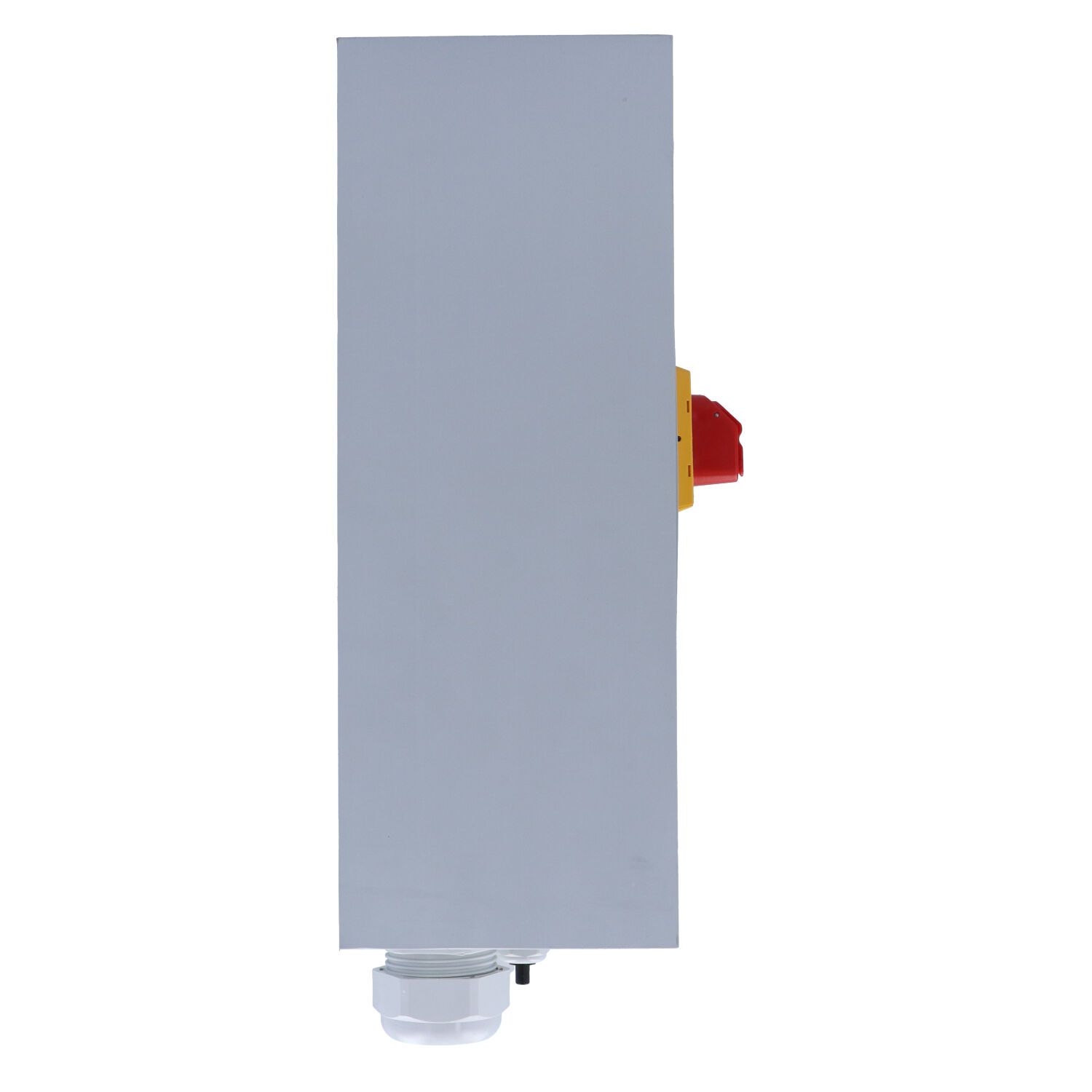

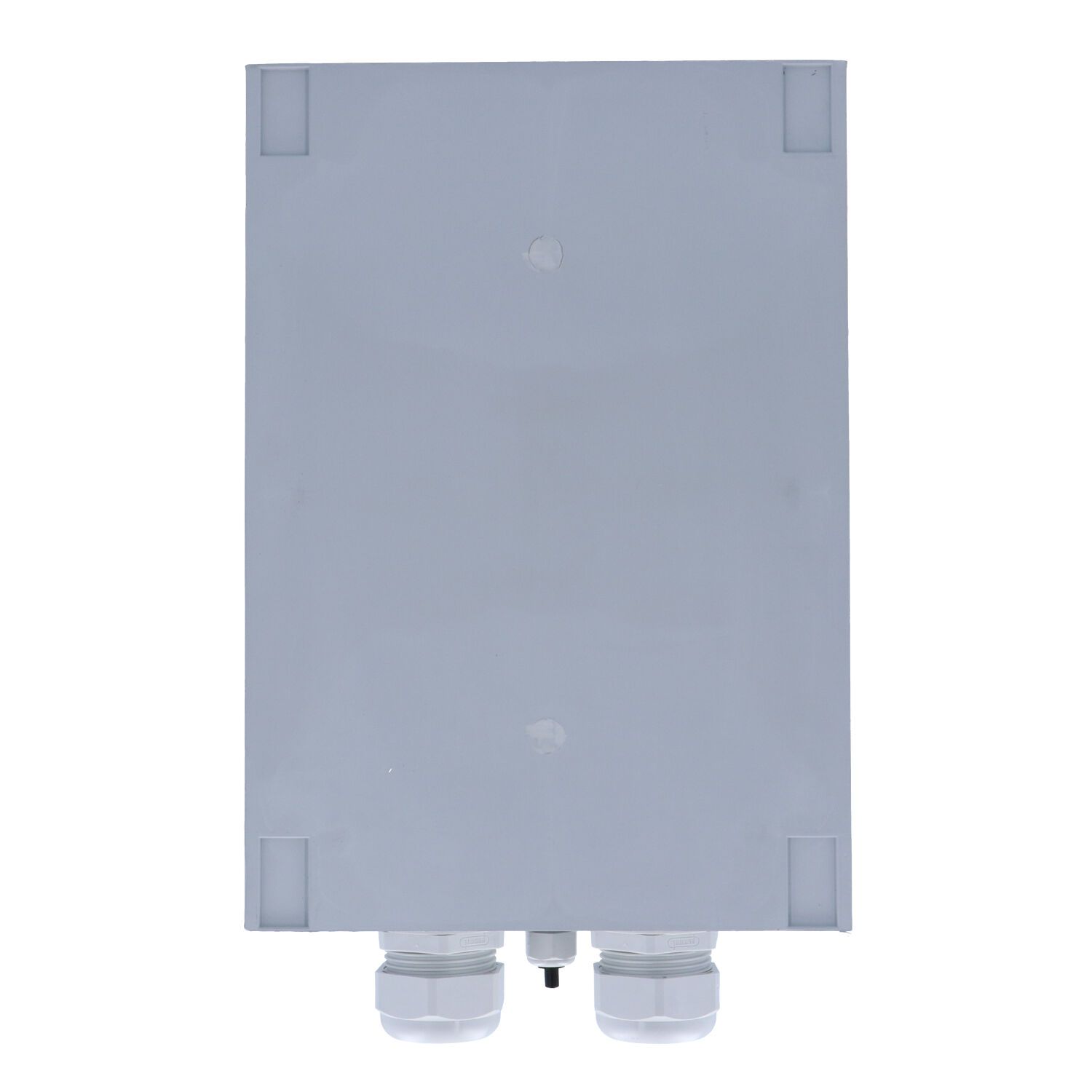

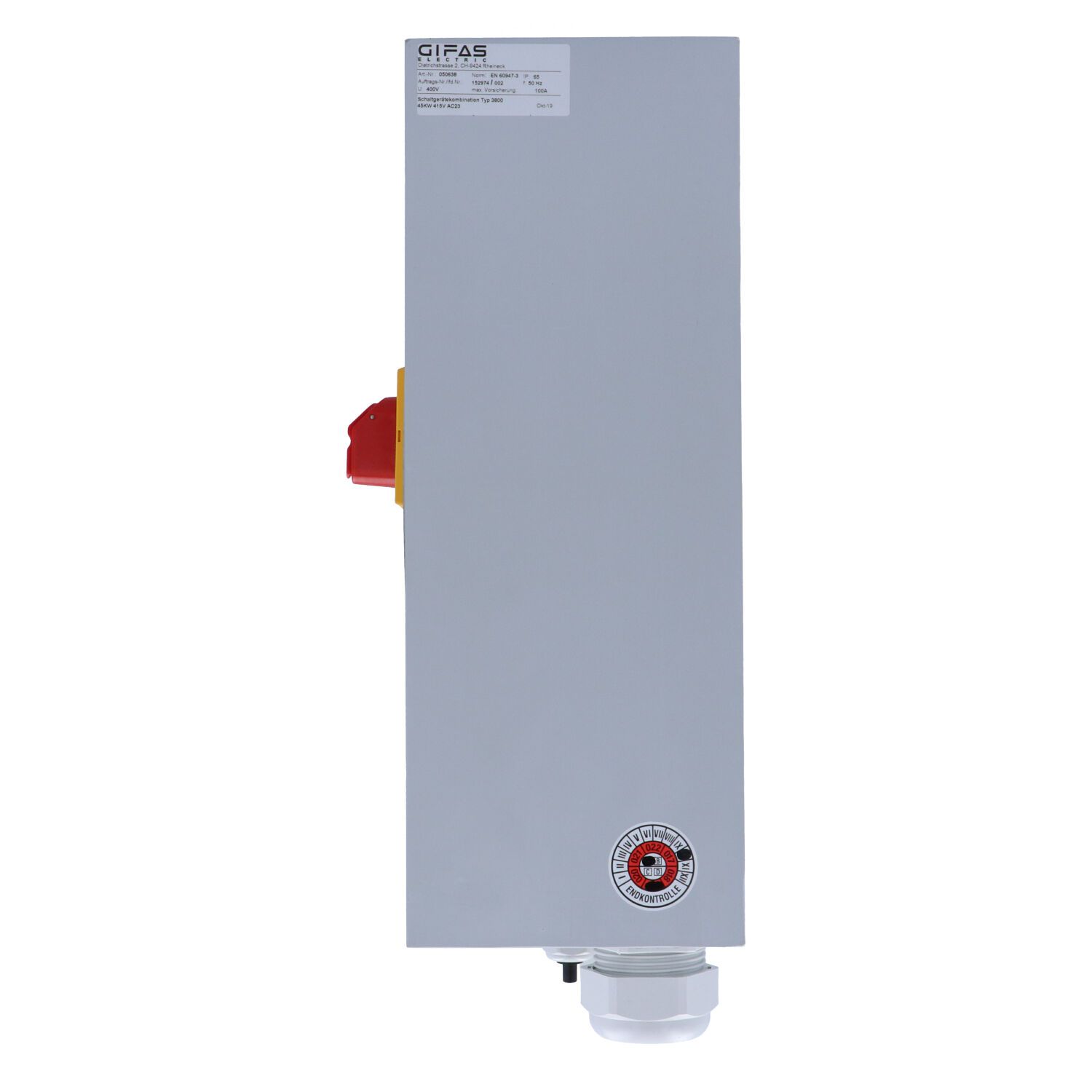

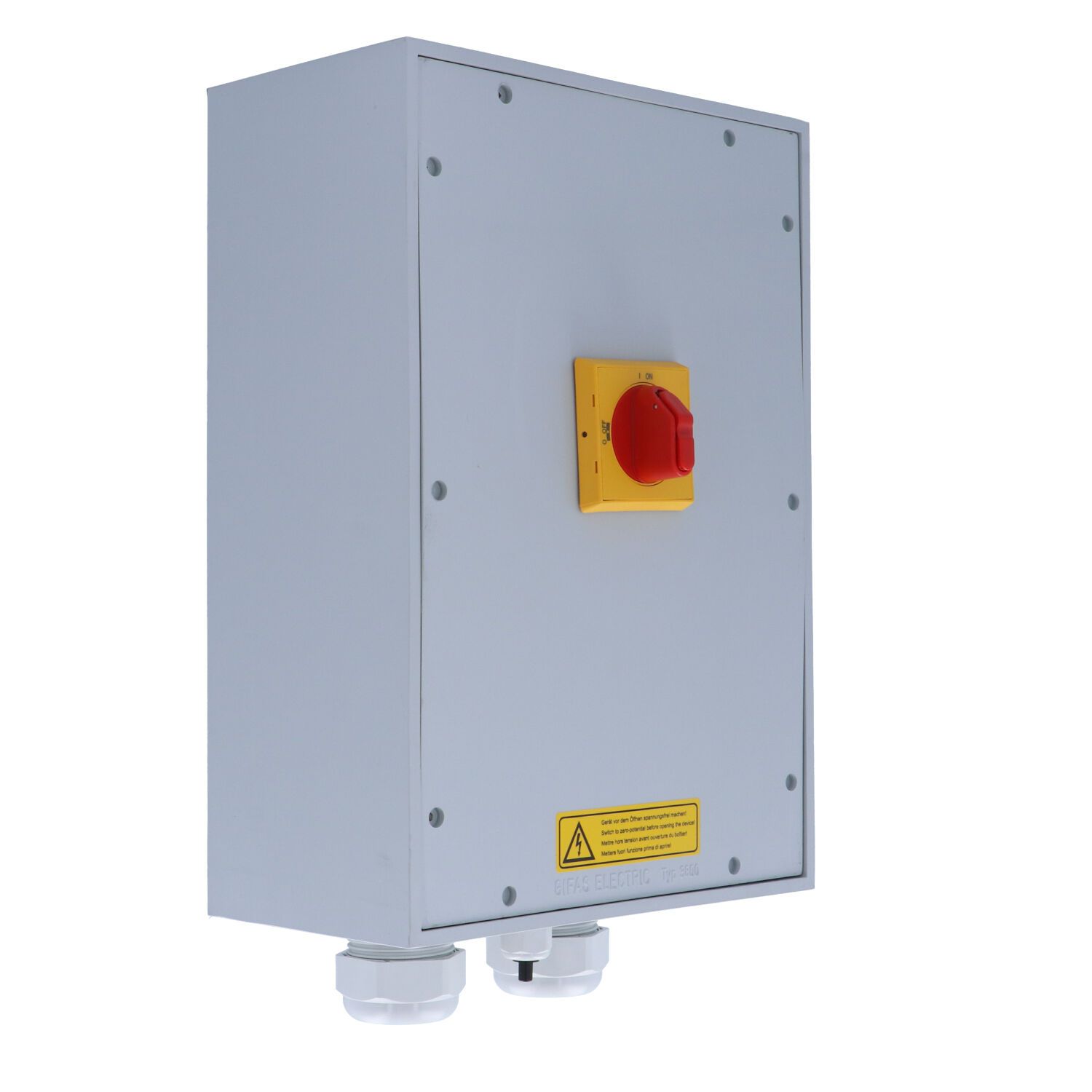

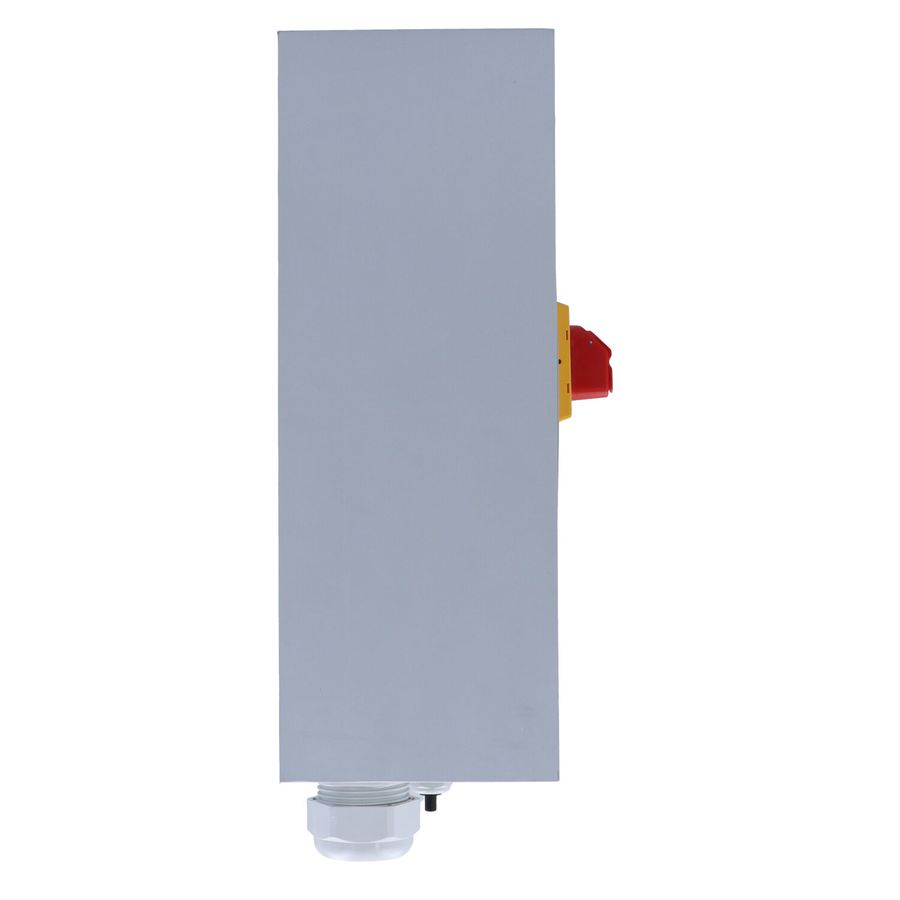

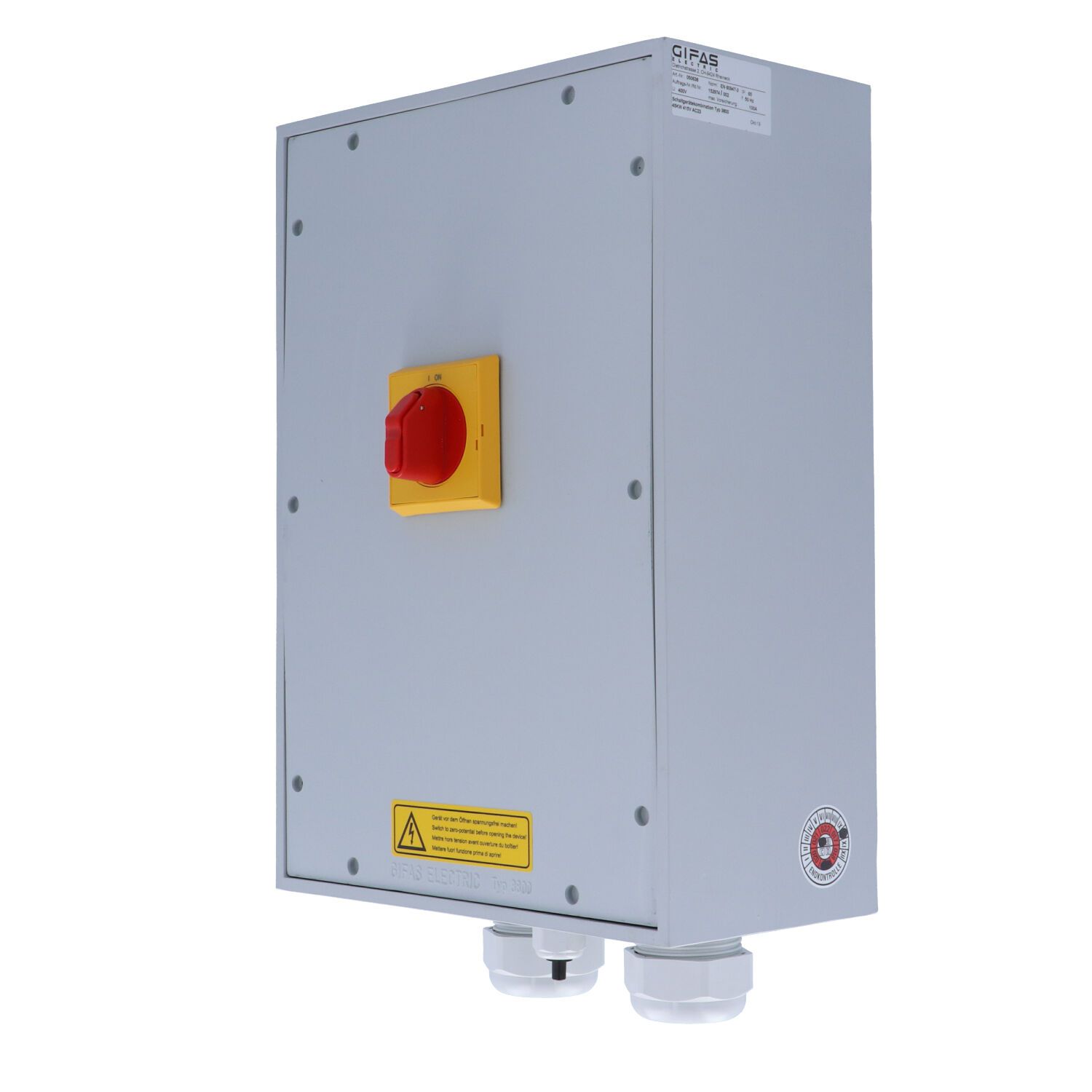

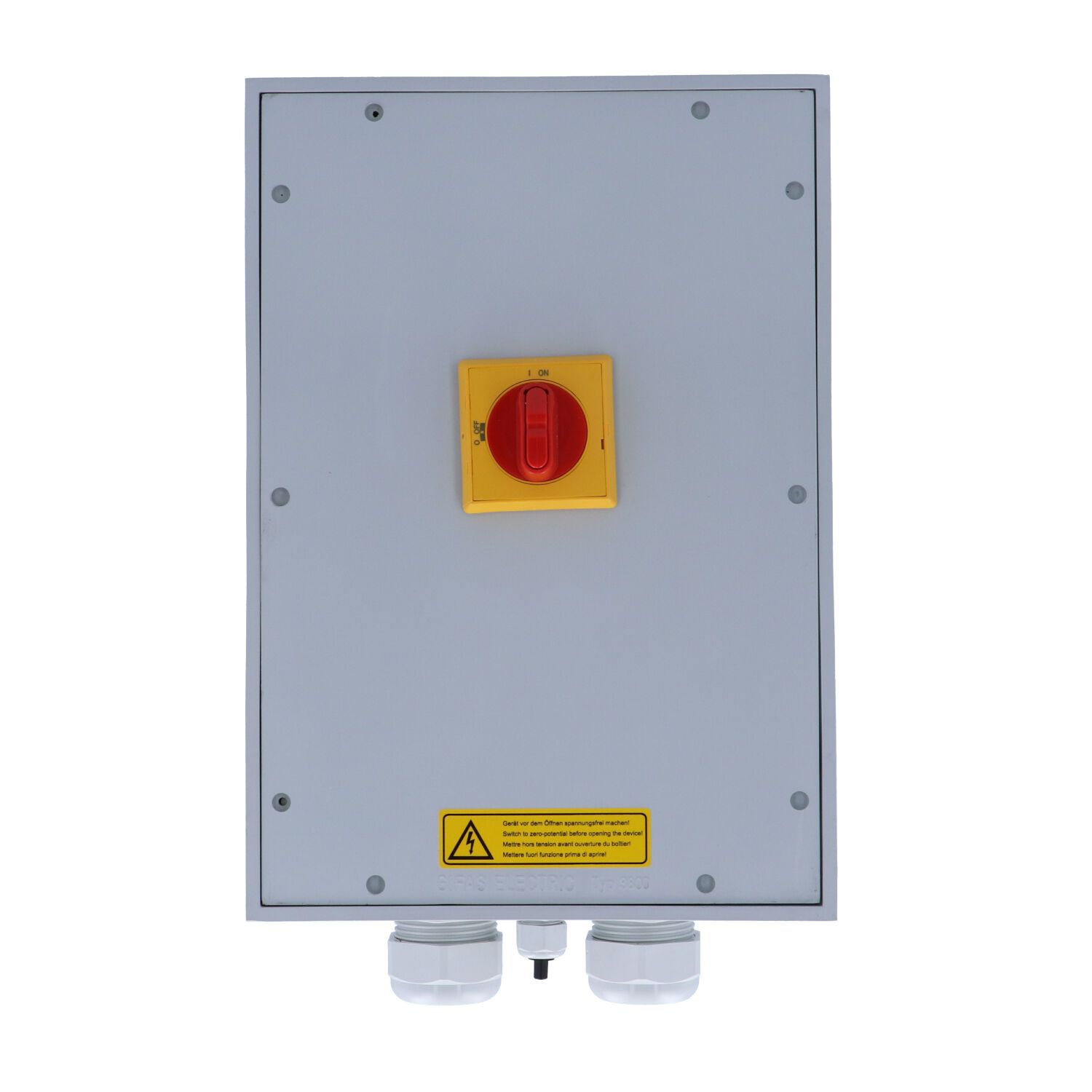

Main switch box with emergency shut-off function

type 3800 light grey/3-90A/45kW/3x C.-glands

Technical data

Power: 45 kW
Stromstärke AC21 400V: 3-125 A
Stromstärke AC23 415V: 3-90 A
Switch: ABB
Input: 1xM16, 2xM40
max. pre-fuse: 125 A
Type: 3800
Fixation: 4 internal assembly channels
Case colour: light grey
Protection rating: IP65
Width: 252 mm
Height: 362 mm
Depth: 133 mm
Case material: solid rubber
Characteristics hard rubber: Hard Rubber:
fully insulated
impact resistant
UV resistant
halogen-free
aging and temperature resistance
oil-and acid-resistant
fire resistant
self extinguishing
good chemical resistance
Release Function: twist release
Additional equipment: 1NC+1NO
