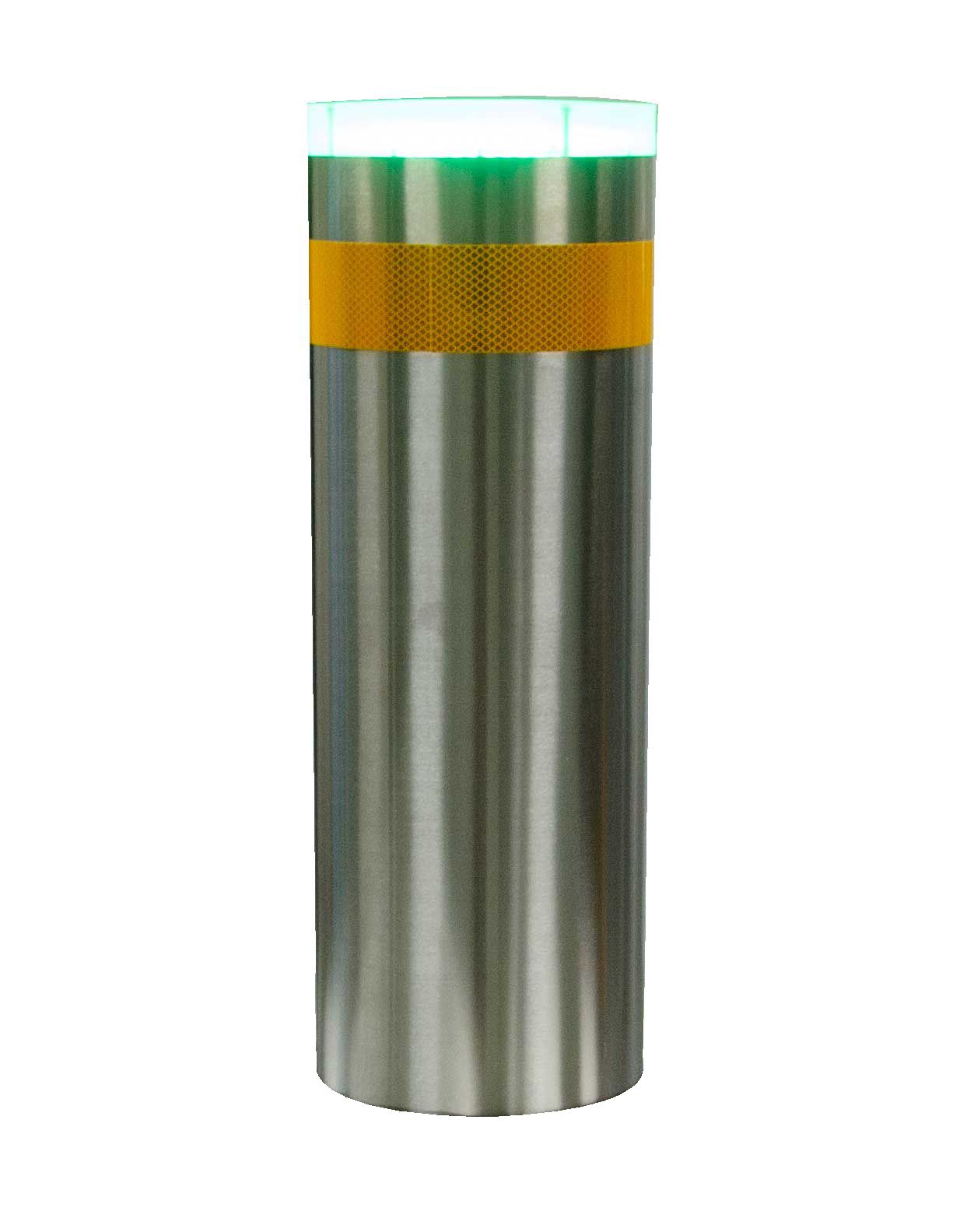

Retractable bollard 2, incl. guide cage,

Technical data

Protection rating

IP67

Material

stainless steel V2A

Operating voltage

Antrieb 24 VDC

Radar

Close range to 2m (24 GHz)

LED luminous row

48×SideLED RGB 0.08 W / 24×TopLED RGB 0.2 W

Integrated heating

yes

Velocity

ca. 12 cm/sec.

Loading class / Europ. stand.

C250

Stroke

600 mm

Drive

Electromechanical (geared motor on spindle)

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 860720

Connection cable with connector 12x1.5 mm² PUR,

casing grey with cable length 10m

Item No: 860721

Connection cable with connector 12x1.5 mm² PUR,

casing grey with cable length 20m

Item No: 860722

Connection cable with connector 12x1.5 mm² PUR,

casing grey with cable length 30m

Item No: 860723

Connection cable bollard to bollard 12x1.5 mm²,

5m length with connector an plug pre-assembled
