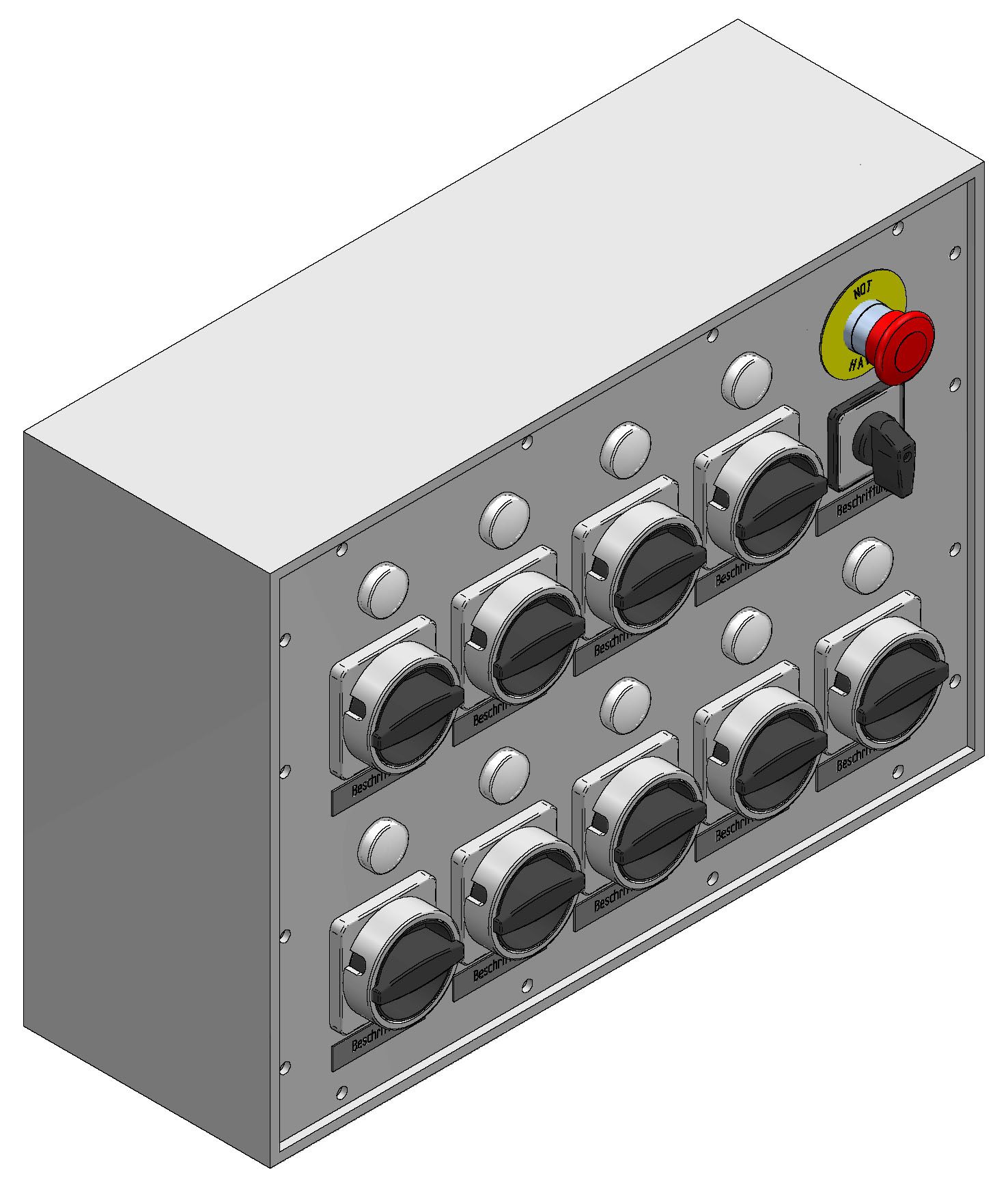

Special combination (ninefold) type 7800

light grey, according drawing

Technical data

Switch: 9x I-0-II lockable
1x I-0-II
max. pre-fuse: 13 A
Type: 7800
Fixation: 4 internal assembly channels
Case colour: light grey
Protection rating: IP55
Width: 503 mm
Height: 362 mm
Depth: 133 mm
Case material: solid rubber
Characteristics hard rubber: Hard Rubber:
fully insulated
impact resistant
UV resistant
halogen-free
aging and temperature resistance
oil-and acid-resistant
fire resistant
self extinguishing
good chemical resistance
LED: 9x230V
Terminal: 2.5mm²
Release Function: twist release
Additional equipment: 1x Emergency Off with twist release
