Item No: 058640

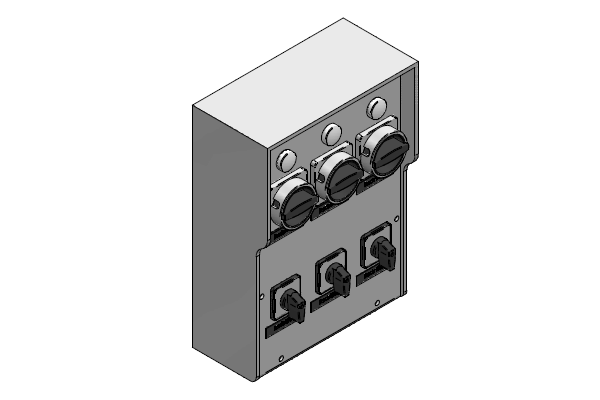

Special combination (triple) type 7450

light grey, according drawing

Technical data

Switch
  • 3x I-0-II lockable
  • 3x I-0-II
Input
3xM25
max. pre-fuse
13 A
Type
7450
Fixation
4 internal assembly channels
Case colour
light grey
Protection rating
IP65
Width
267 mm
Height
371 mm
Depth
133 mm
Case material
solid rubber
Characteristics hard rubber
Hard Rubber:
  • fully insulated
  • impact resistant
  • UV resistant
  • halogen-free
  • aging and temperature resistance
  • oil-and acid-resistant
  • fire resistant
  • self extinguishing
  • good chemical resistance
LED
3x230V
Terminal
2.5mm²
Release Function
twist release
