Item No: 010649

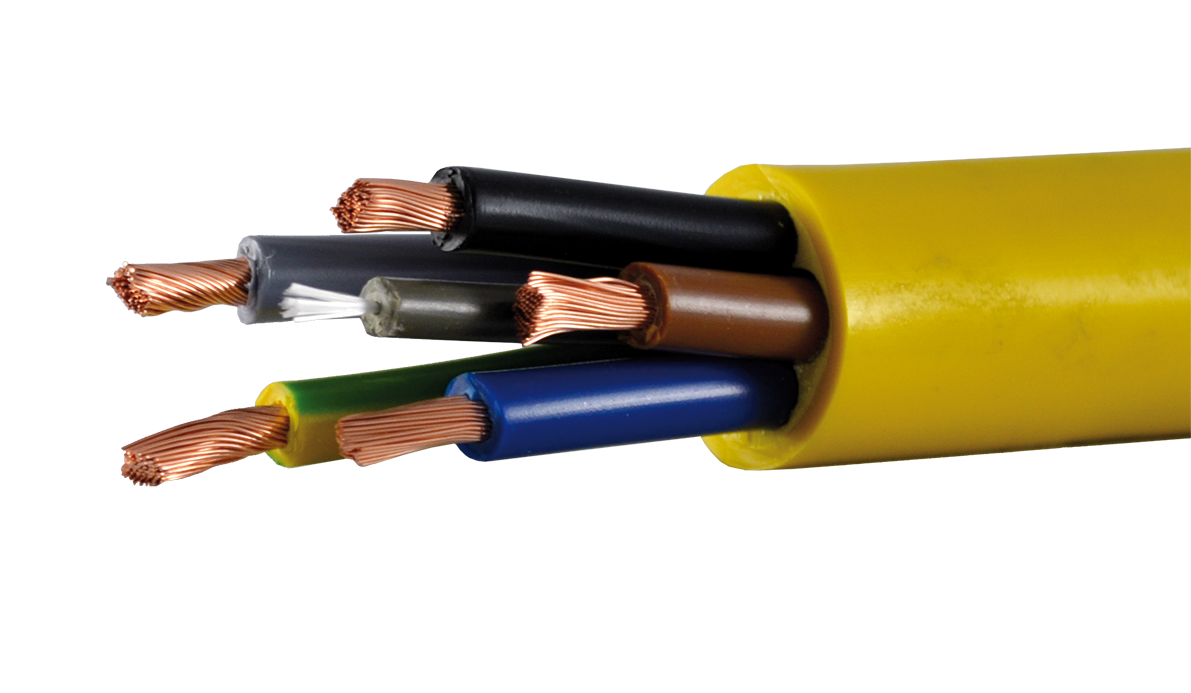

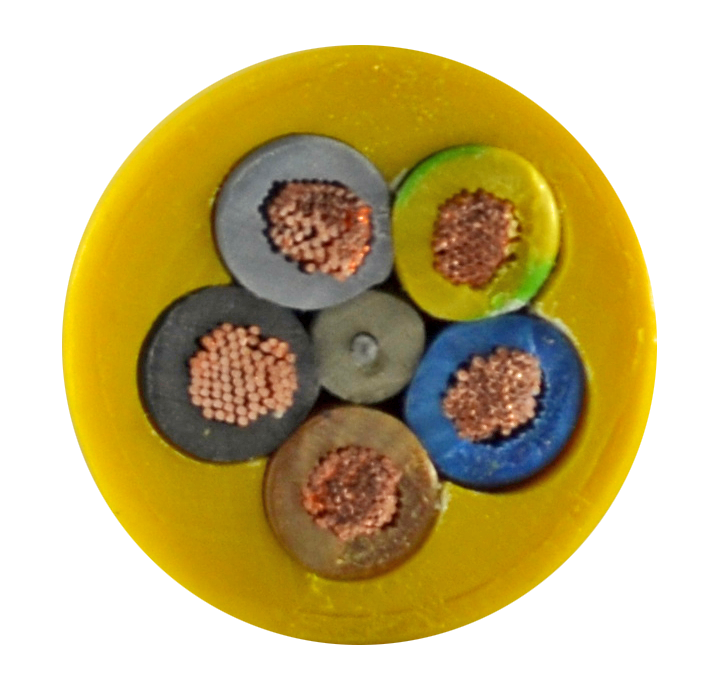

GIFAFLEX CH-N07V3V3-F reinforced

5x2.5mm², yellow RAL 1021, external-Ø 12.3mm

Technical data

Cross-section x mm²
5 x 2.5
Cable
Gifaflex
Colour
yellow
External diameter
12.3 mm
Voltage
450V / 750V
Code HD 308 S2
gn/ge, bl, br, sw, gr
Strand structure (quantity x mm)
50 x 0.25
Bending radius
10xD (D=Ø)
Testing voltage
2'000V - 3'000V / 50Hz
Weight kg/100m
23 kg
Temperature range
-25°C bis +70°C, ruhend bis -40°C
Cores/coat
Cu-flex (VDE 0295 Kl. 5), Gifaplast/Gifaplast (Spezialmischung)
