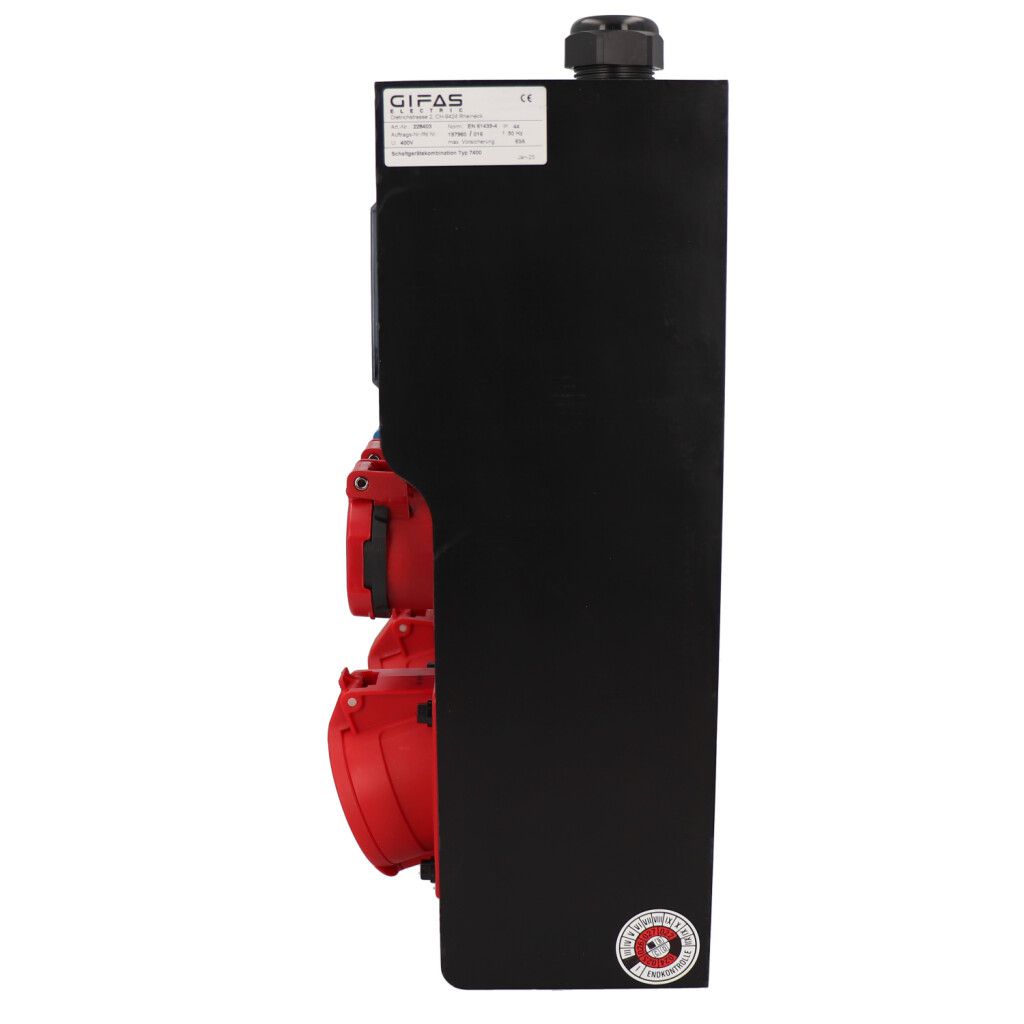

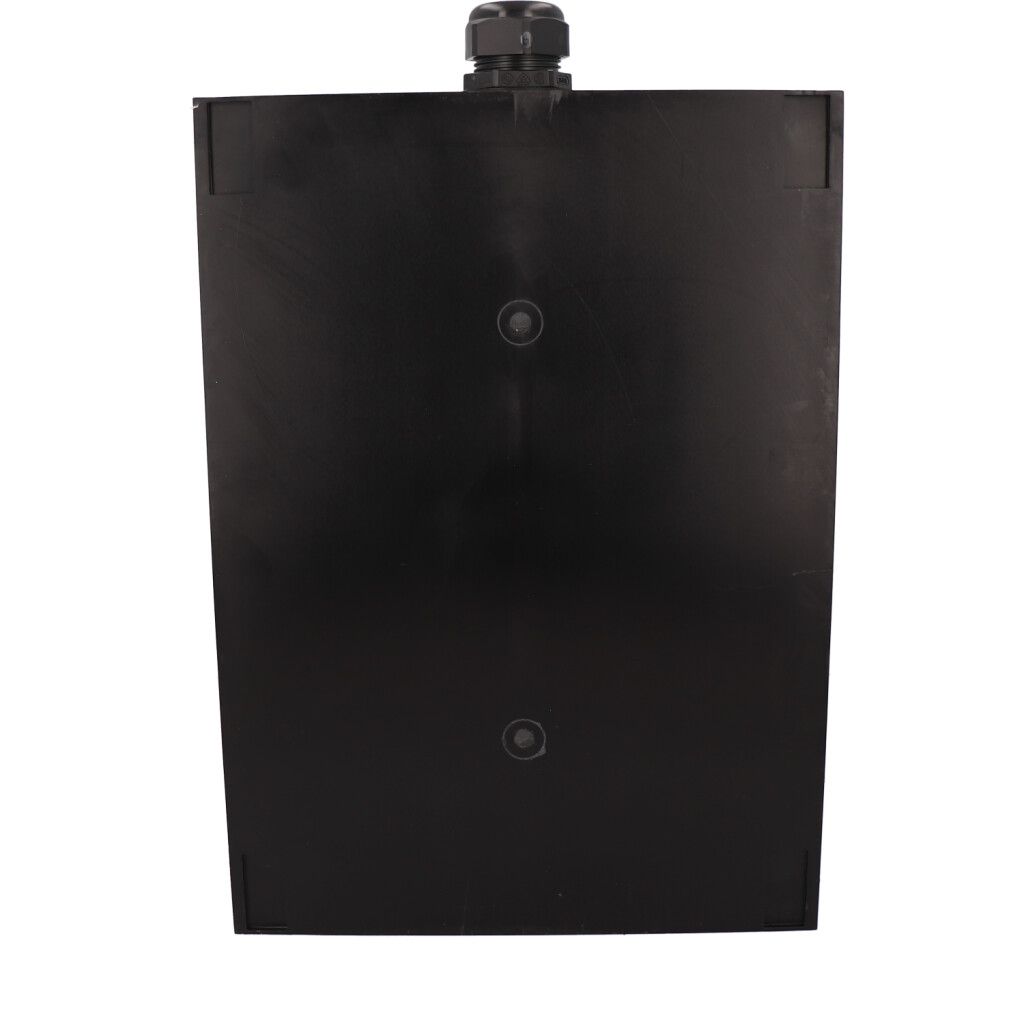

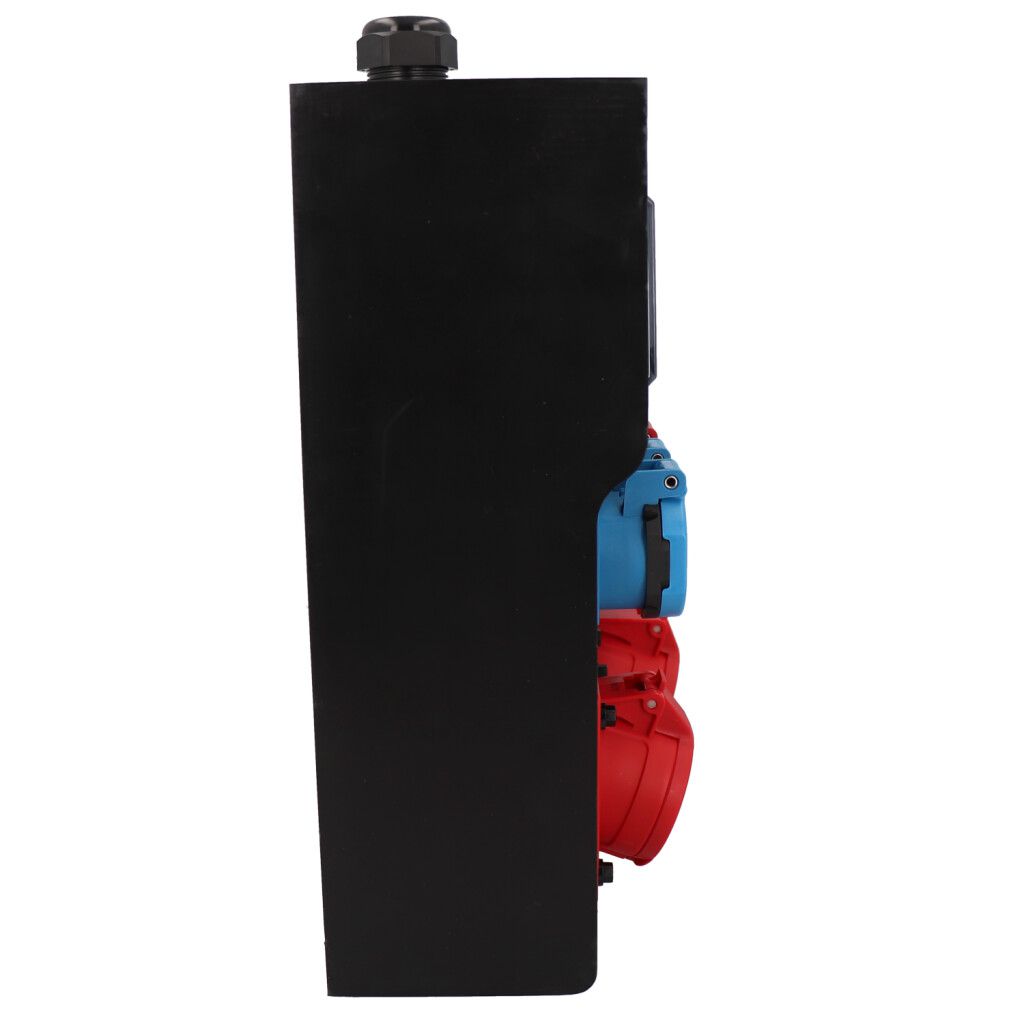

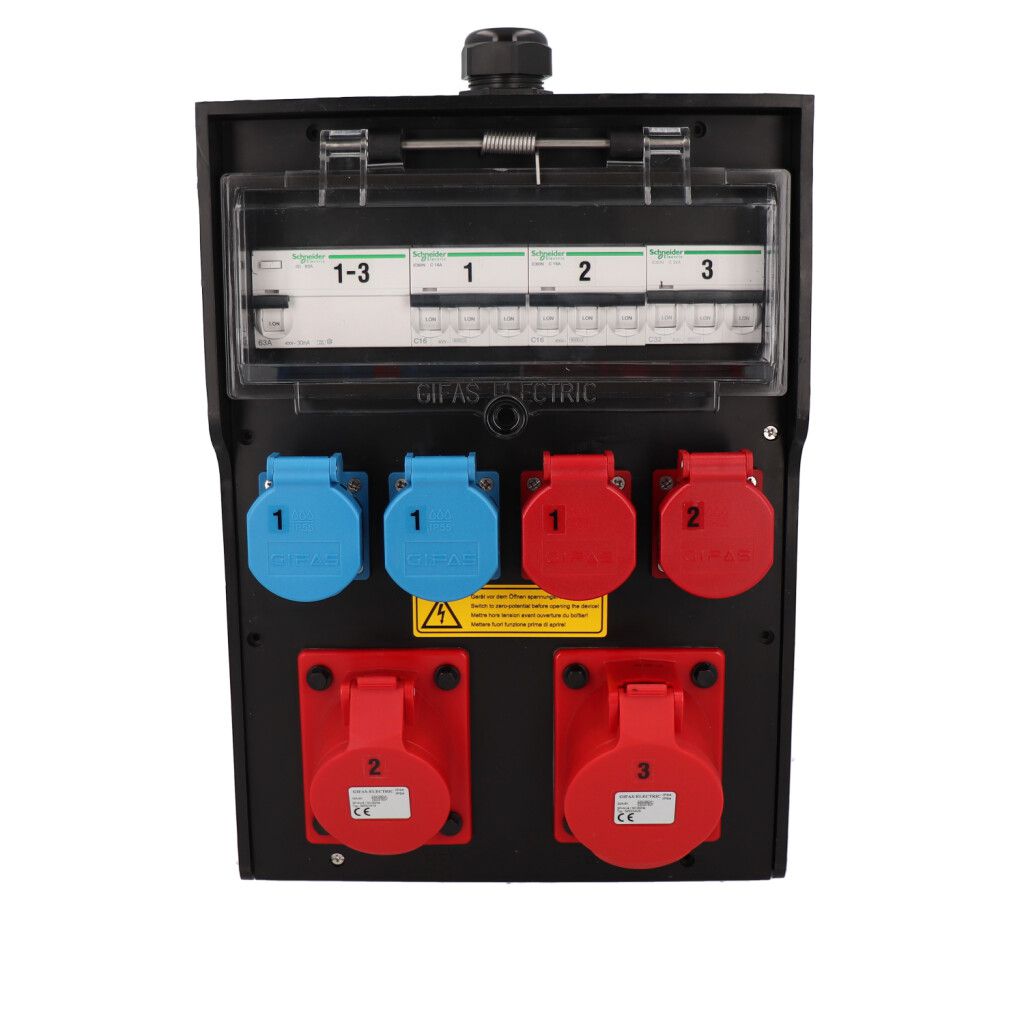

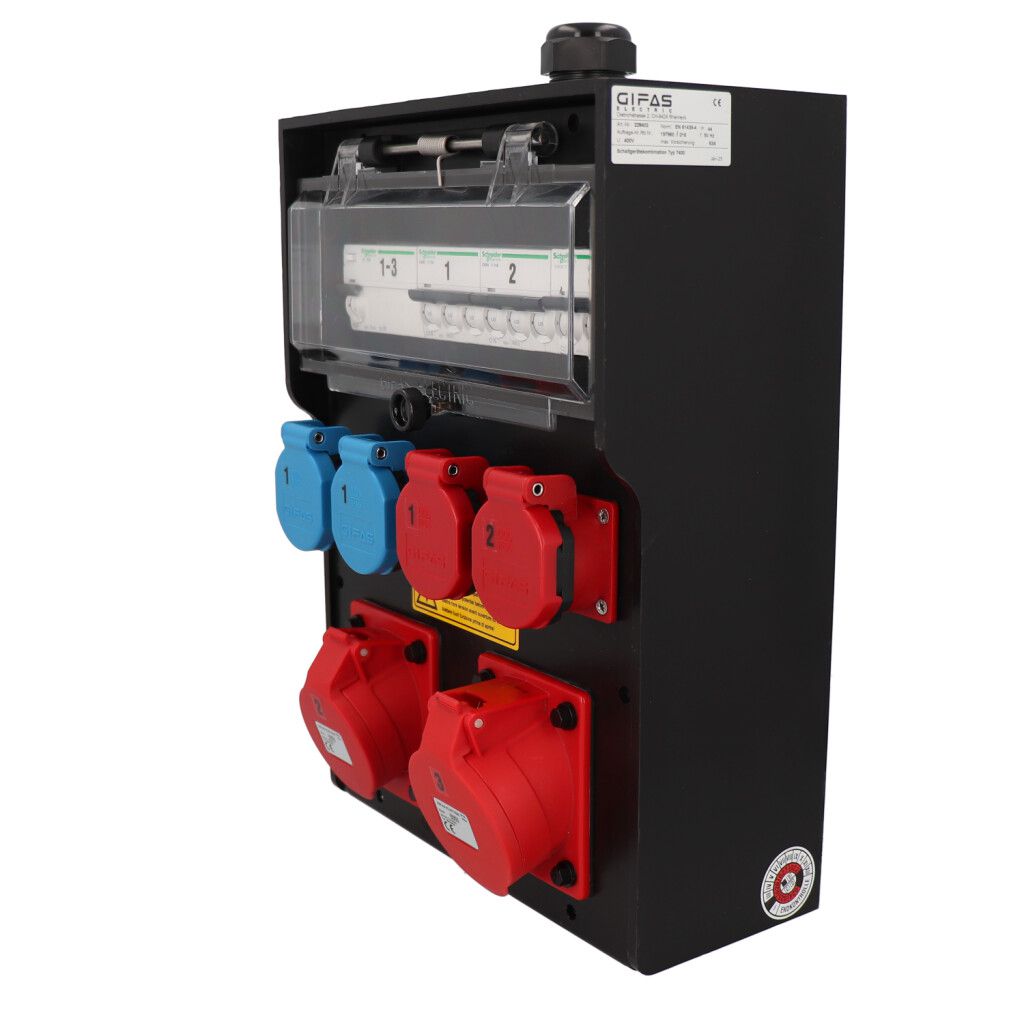

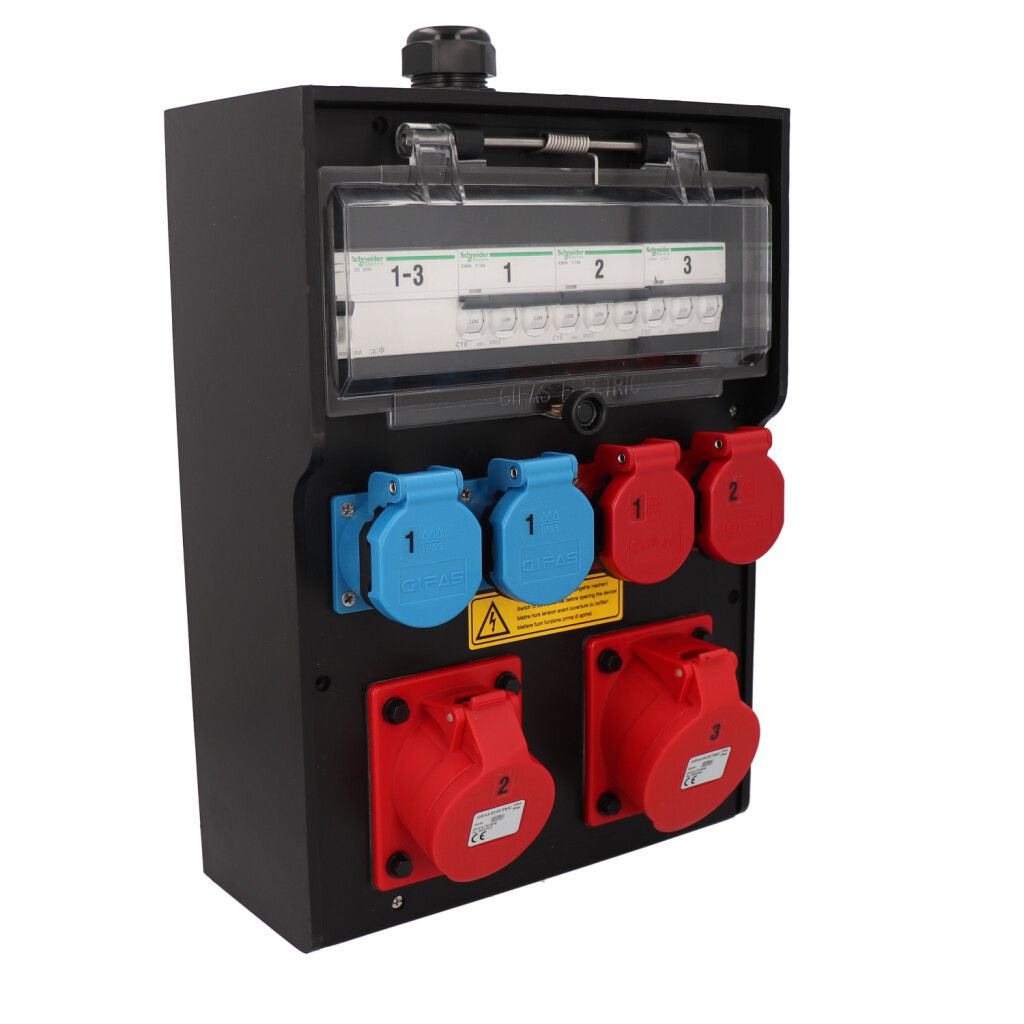

Hard rubber distributor box type 7400, black

Technical data

Output plug

• T23
• T25
• CEE 16/5
• CEE 32/5

max. pre-fuse

63 A

Input cable glands

M32

Width

267 mm

Height

371 mm

Depth

133 mm

Type

7400

Protection rating

IP44

Case material

solid rubber

Characteristics hard rubber

Hard Rubber:

• fully insulated
• impact resistant
• UV resistant
• halogen-free
• aging and temperature resistance
• oil-and acid-resistant
• fire resistant
• self extinguishing
• good chemical resistance

Case colour

black

Fixation

4 internal, separated assembly channels for wall mounting

Additional equipment

with protective cover and protective cap

Output

2xT23, 2xT25, 1xCEE 16/5, 1xCEE 32/5

Downloads

Dimensional drawing/Scheme

Accessories

Item No: 043497

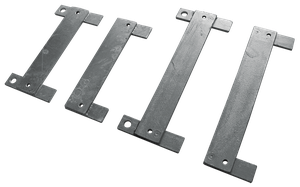

Uni-brackets galvanised for type 7400 (set of 2)

Item No: 040509

Mini stand galvanised for type 7300/7400/7700, h=580mm

Item No: 113103

Stand V2A foldable for type 7200/7300/7400/7700, h=645mm

Item No: 029466

Mounting bracket, long/diagonal, aluminium,

for type 7400

Show all

Spare parts

Item No: 019522

Knurled screw M4x20mm
